GB-HB-R SERIES

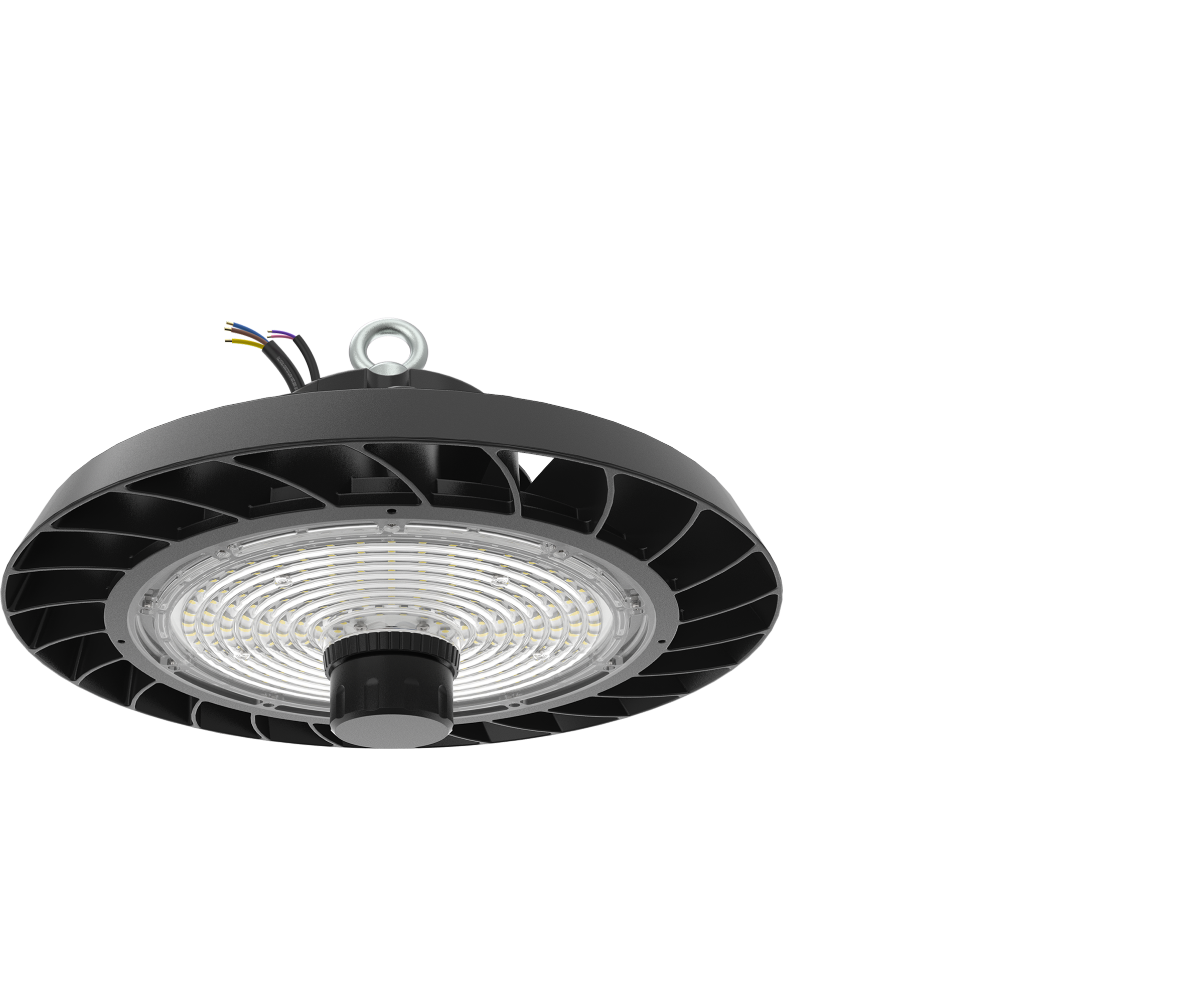

Name: GB-HB-R LED High Bay Light
Brand: Golden Bright

Industry Light

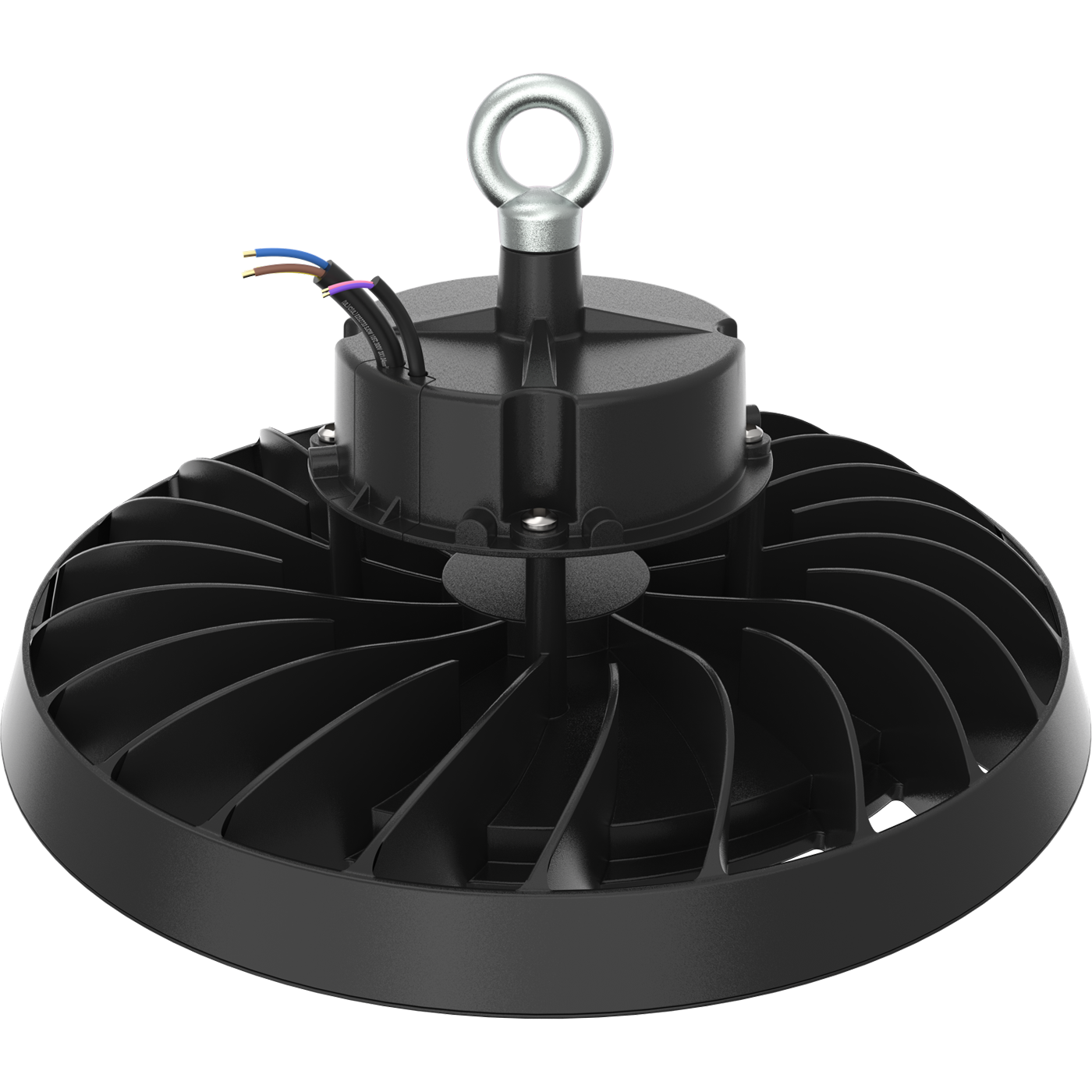

Exceptionally Designed With A Pure Aluminum Housing

Product Description

• 4 sizes for different wattage from 100W to 240W
• Top and bottom vent convection,high-quality heat dissipation
• High-stability driver from SOSEN(standard)/ Philips,Lifud(option)
• High energy savings compared to systems with traditional discharge lamps
• High light efficiency with perfect light distribution
• Light-on-demand feature with optional motion sensor *
• Dedicated range of mounting accessories *
• Emergency lighting with optional battery *
• Fast ROI thanks to long life span and reduced maintenance
• Compact housing optimised for heat dissipation and reduced dust accumulation

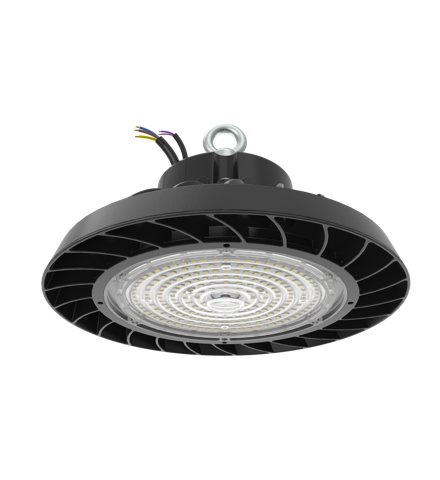

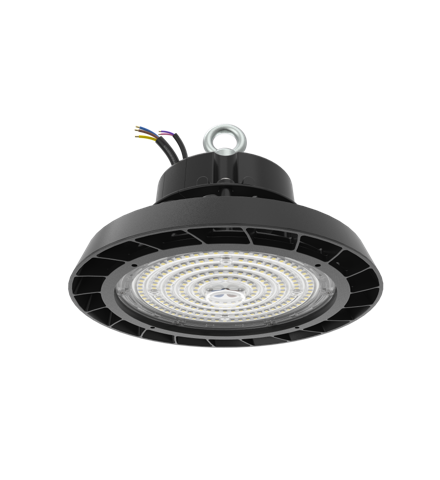

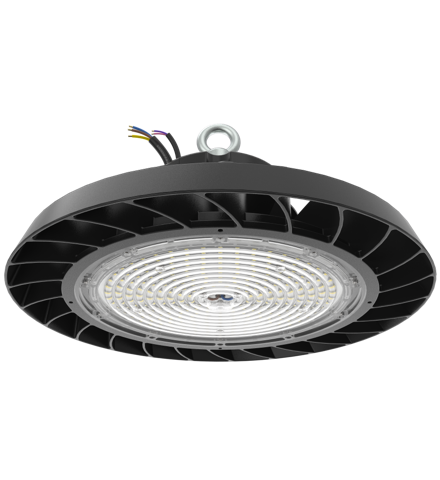

Multi-Angle Display

Precise Beam Angle Design. Unlike most suppliers in this industry use public lens in their UFO Shape High Bay. We design our own lenses to reach a Higher Effiency and precise beam control. It is easy to tell the difference when you have the product on hand to compare.

GB-HB-R Series High Bay

Model	GB-HB-R 01 GB-HB-R 02 GB-HB-R 03 GB-HB-R 04
Product Picture
Number of Modules	160 240 320 420
LED Light Power	100W 150W 200W 240W
LED Chip	SMD 2835 (standard)/ Bridgelux, Cree, and Lumileds 3030 are available options
Light Efficacy	170lm/w (standard) / 190lm/w, 210lm/w (option）
CRI	≥ 70 or ≥ 80
Luminous Flux (3030)	17000lm 22500lm 34000lm 40800lm
Color Temperature	2700K, 3000K, 4000K, 5000K, 5700K, 6500K
LED Light Life	Up to 100,000hrs LM70,Ta 25℃
Driver	SOSEN (standard) / Philips, Lifud (option)
Driver Isolation	Class I EU
Frequency	50 / 60Hz
Power Factor	≥0.95 cos
Control Dimming	Plug and Play Zhaga Microwave Sensor/1-10V dimming
Body Parts Material	ADC12 (standard)
Optic	Polycarbonate
Beam Angel	60° / 90° / 120°
Optional Configuration	6KVA standard/ 10KVA SPD (option)
Operation Voltage	AC 85-265V
Operating Temperature	-35℃~50℃ / 10% ~ 95% (humidity)
Color Stability	3 or 5 MacAdam steps
Warranty	5 years

Packing Information

Model	Light Size	Package Size	Weight
GB-HB-R 01	ø230*119mm	L275W275H175mm	2.0kg
GB-HB-R 02	ø270*122mm	L310W310H175mm	2.5kg
GB-HB-R 03	ø310*122mm	L360W360H175mm	3.3kg
GB-HB-R 04	ø325*127mm	L365W365H160mm	3.3kg

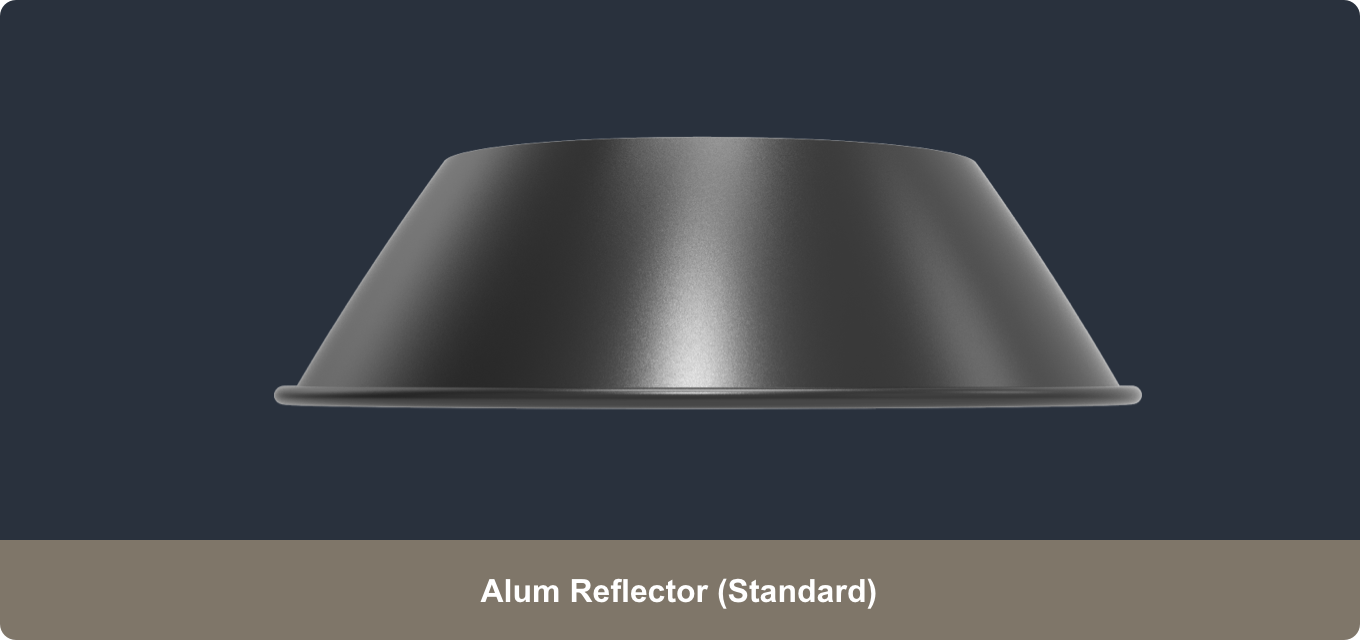

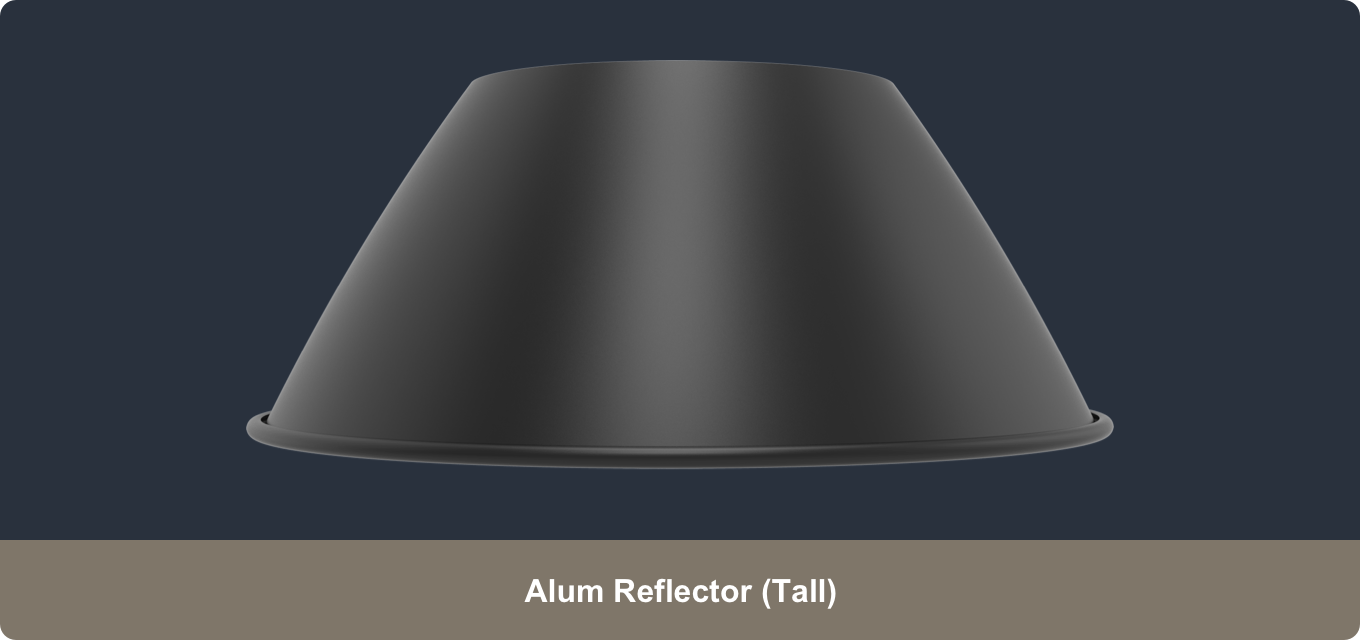

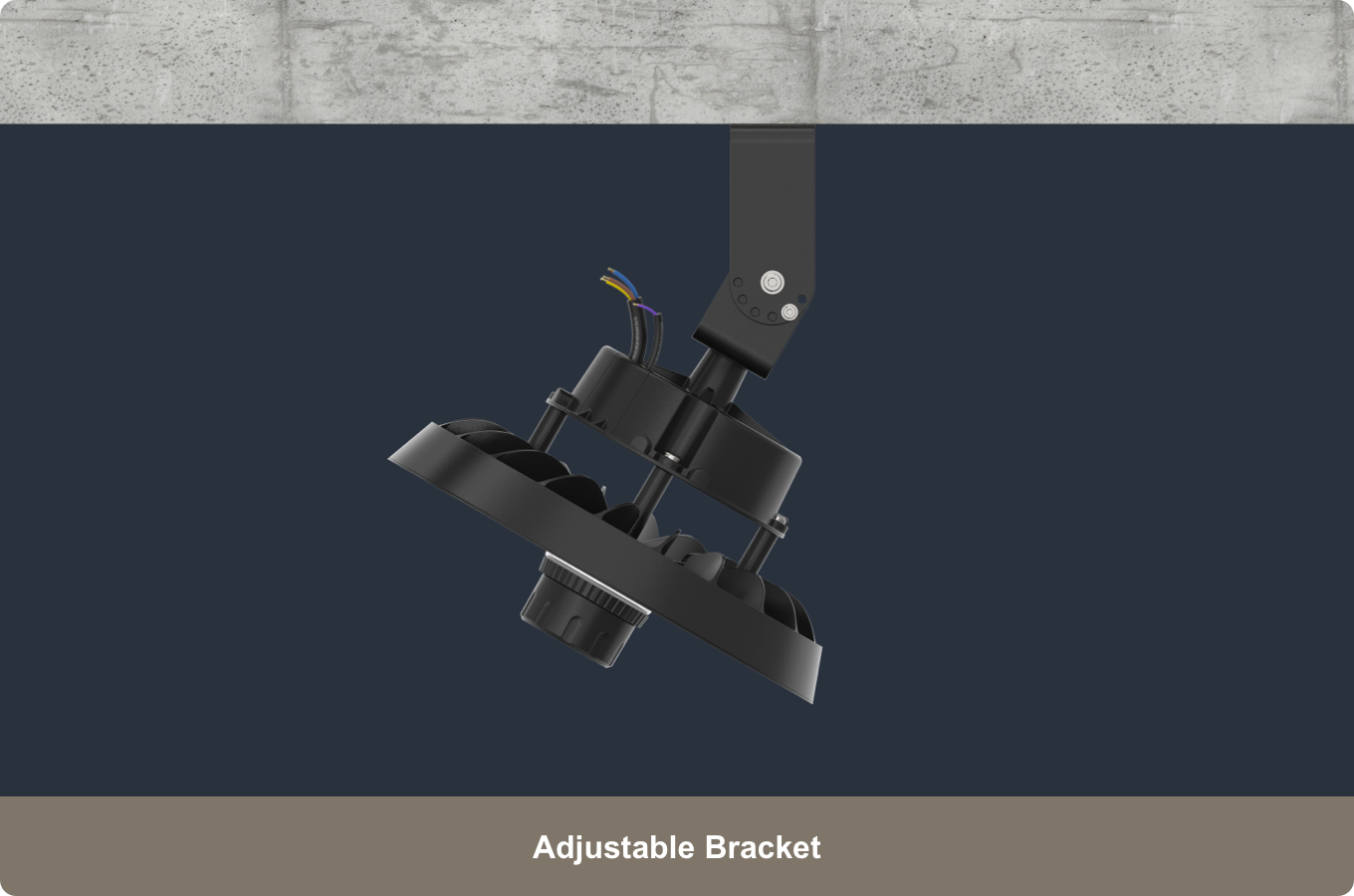

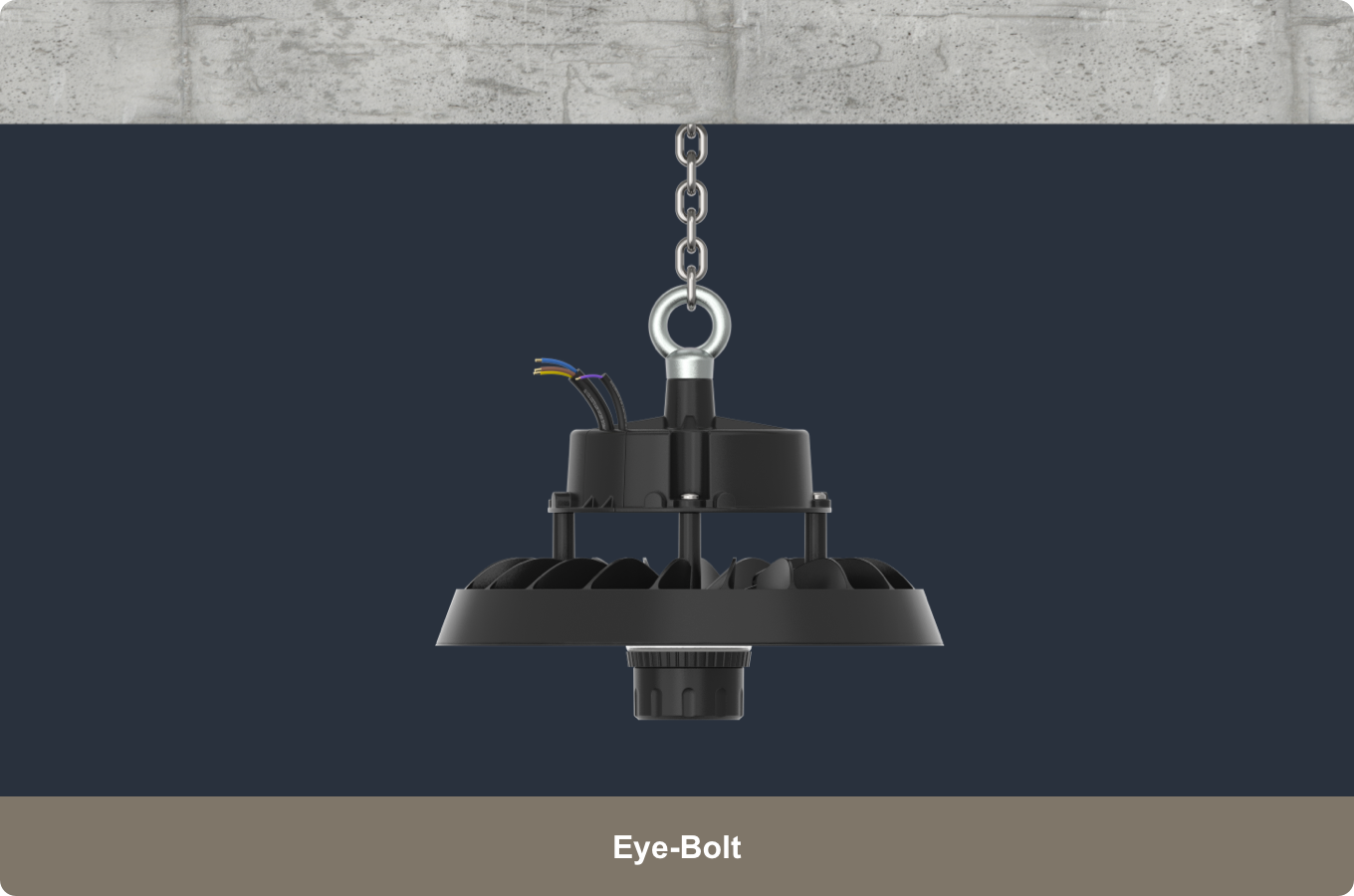

Mounting Options

Tailored Illumination Solutions

Motion Sensor Options

Applications like Warehouses, Distribution Centers, Production Facilities and other Industrial Spaces with occupancy less than 50% and High Ceilings(15-45ft) are ideal environment for sensors. It helps saving energy costs by delivering Light only where you need it, when you need it.
