Stable. Versatile. Built for Wide-Area Illumination.
Tapered Octagonal Design
Optimized aerodynamic shape improves structural stability and reduces vibration under wind load.
Flexible Installation & Heights
Available in 6m–25m range, with options for flange base or direct burial installation based on project site.
Heavy-Duty Load Capacity
Capable of supporting multiple LED floodlights or other large fixtures at different elevations.

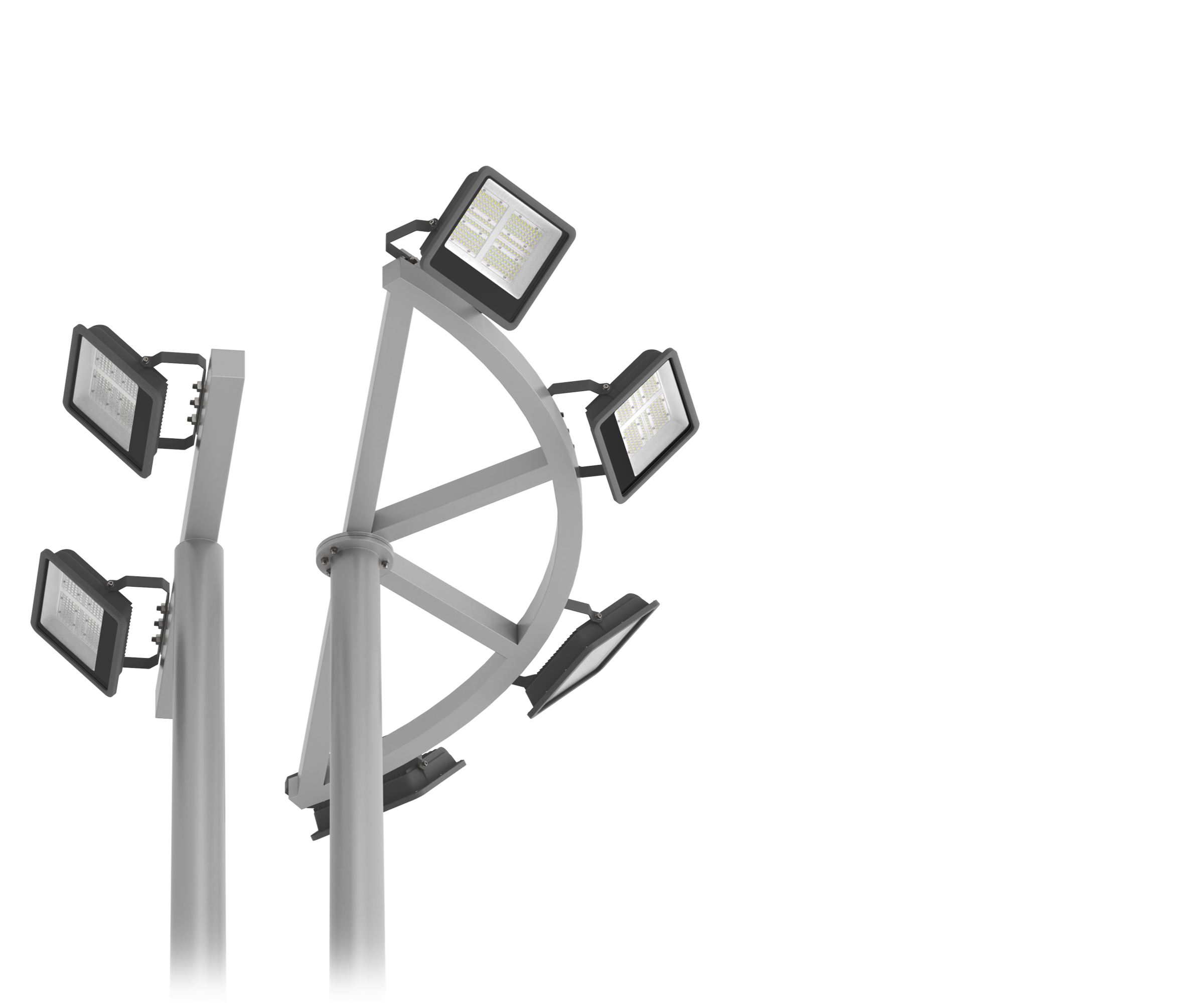

Customizable Fixture Brackets
Brackets can be configured for single, double, or multi-directional floodlight installation.
Corrosion-Resistant Surface
Hot-dip galvanized coating (≥85μm) ensures long-term protection in coastal or high-humidity environments.
Wide Application Areas
Ideal for airports, parking lots, sports courts, construction sites, ports, logistics parks, and more.
| Item | Specification |
| Product Name | Octagonal Tapered Flood Lighting Pole |
| Pole Height | 6m ~ 25m (customized) |
| Pole Shape | Tapered / Octagonal |
| Material | Q355 Hot-Dip Galvanized Steel |
| Wall Thickness | 3mm ~ 10mm (based on height and load requirements) |
| Surface Treatment | Hot-Dip Galvanization ≥85μm, Optional Powder Coating |
| Galvanization Standard | ISO1461 / ASTM A123 |
| Bracket Type | Single / Double / Multi-directional floodlight brackets |
| Connection Type | Flange Connection / Slip Joint (if multi-section) |

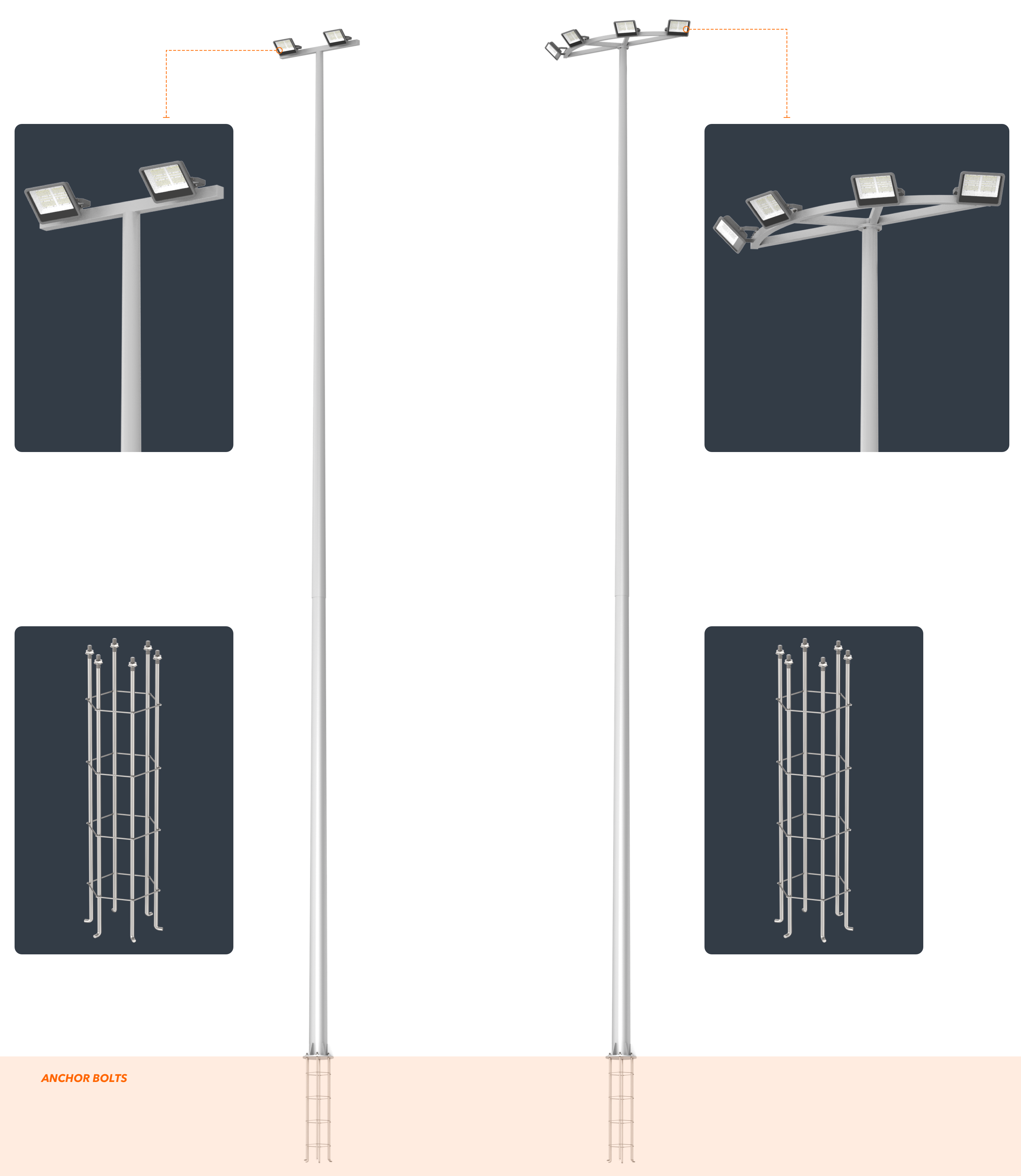

| Mounting Method | Anchor Bolt Base Plate |
| Wind Resistance | Up to 160 km/h (customized as per local conditions) |
| Welding Standard | AWS D1.1 / Internal & External Seam Welding / Flaw Detection Passed |
| Lighting Compatibility | LED / HID / HPS Floodlights |
| Applications | Plazas, Parking Lots, Stadiums, Logistics Parks, Ports, Security Zones |
| Operating Temperature | -40°C to +70°C |
| Certification | CE / ISO9001 / SGS |
| Warranty | 5 Years |
| Service Life | ≥25 years with proper maintenance |
