Flood light

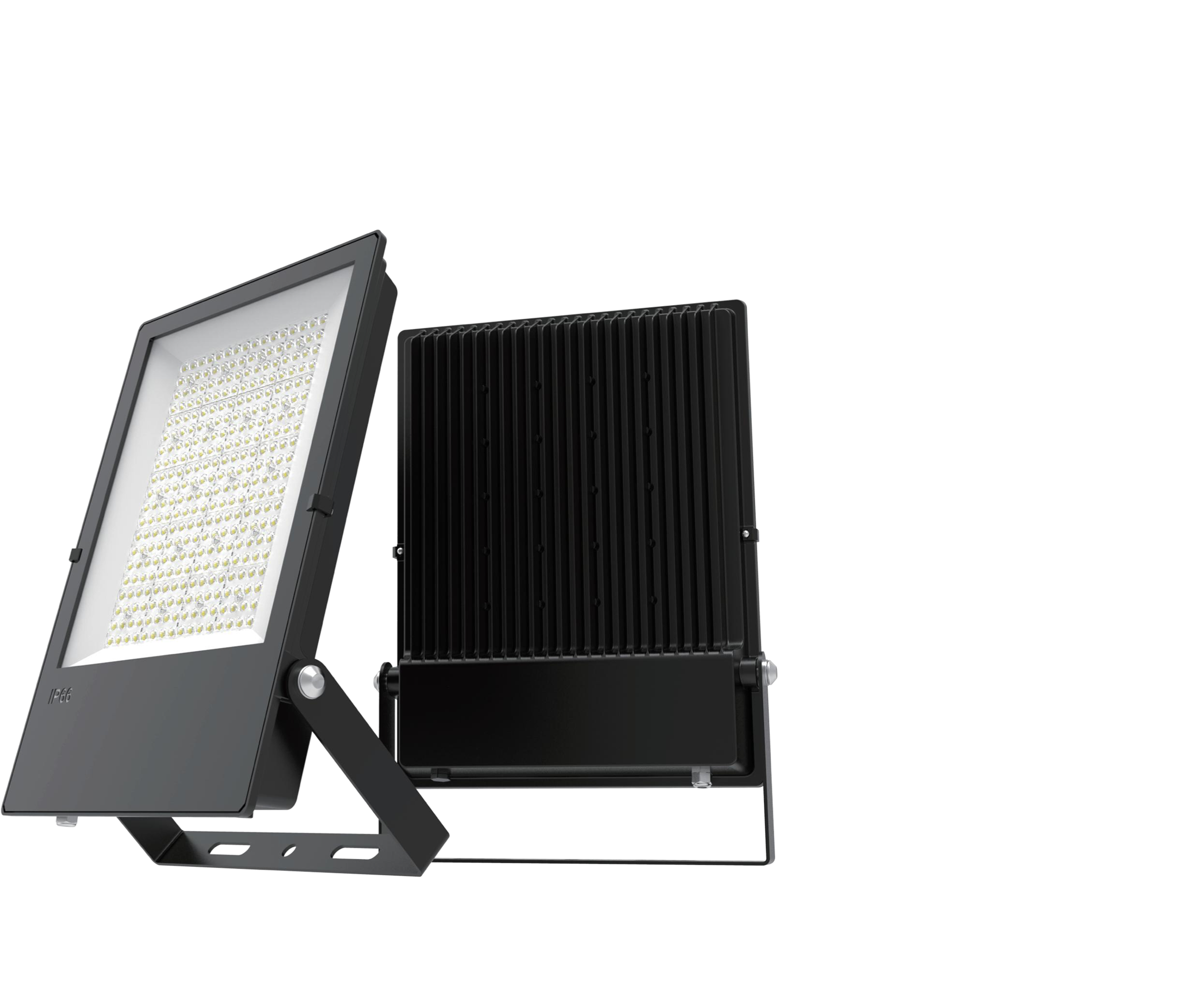

Golden Bright FL08 01

GB-FL08 SERIES

Flood light

Perfect Thermal Management For Long-term Performance

Product Description
Golden Bright Certification
• 5 sizes for different wattage from 250W to 1250W
• High-efficacy 3030/5050 LED chips from XUYU.
• High-stability driver from Done (standard) / MEANWELL, MOSO, INVENTRONICS, SOSEN (available)
• Super luminaire efficiency up to 150 lm/w
• Wide choice of optics to suit more applications (asymmetrical and symmetrical)  *
• The single module matches the reflector to reduce light pollution *
• Power & CCT Adjustable by Remote *
• Get more energy saving with a smart microwave sensor *
• Suitable for squares, stadium, and parking lots
• 5 year warranty with excellent stability and longevity
‍
Optional features
• 0-10V/ DALI2.0/ Instant lighting control
• SPD: 6KV-Line-Line, 6KV-Line-Earth

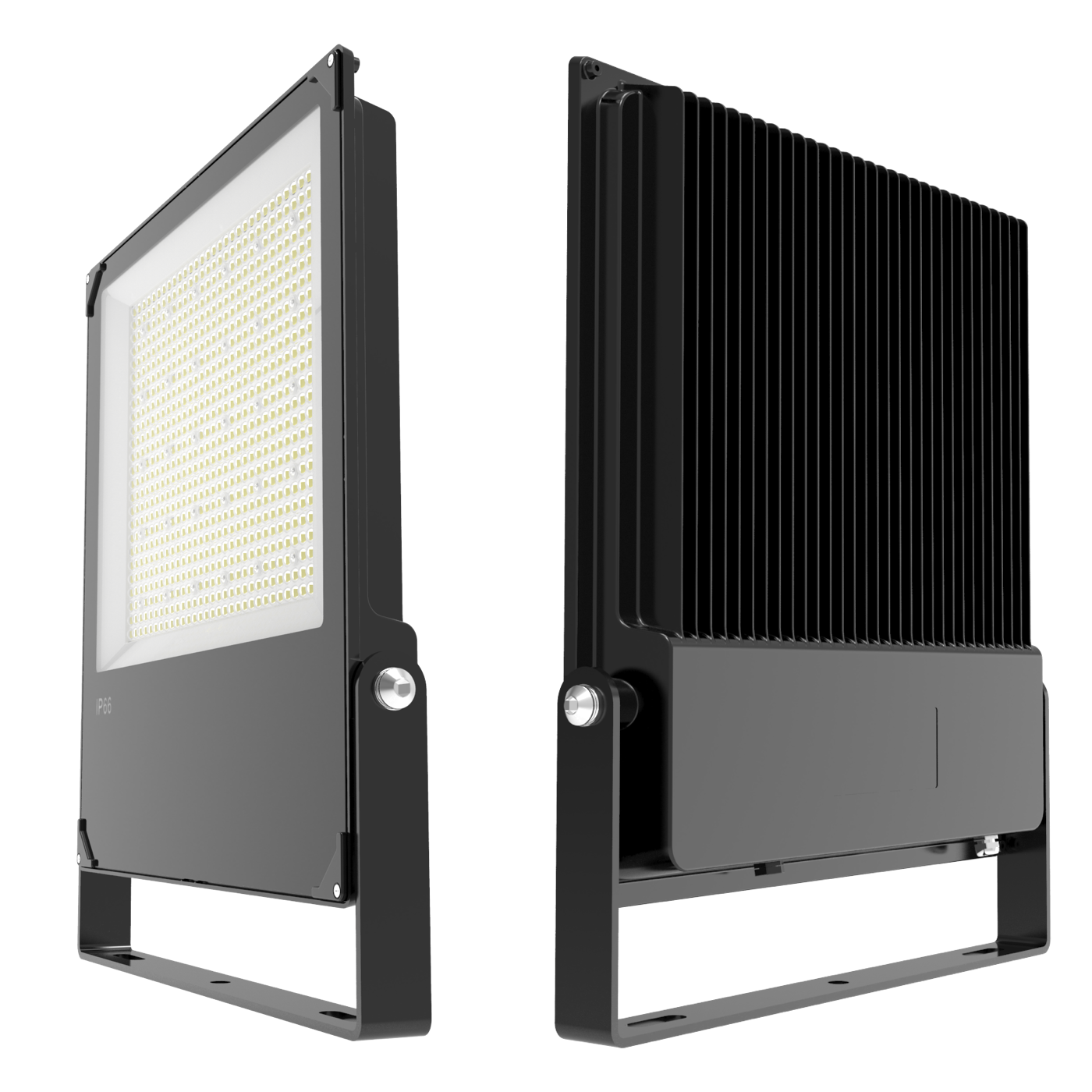

Golden Bright FL08 02

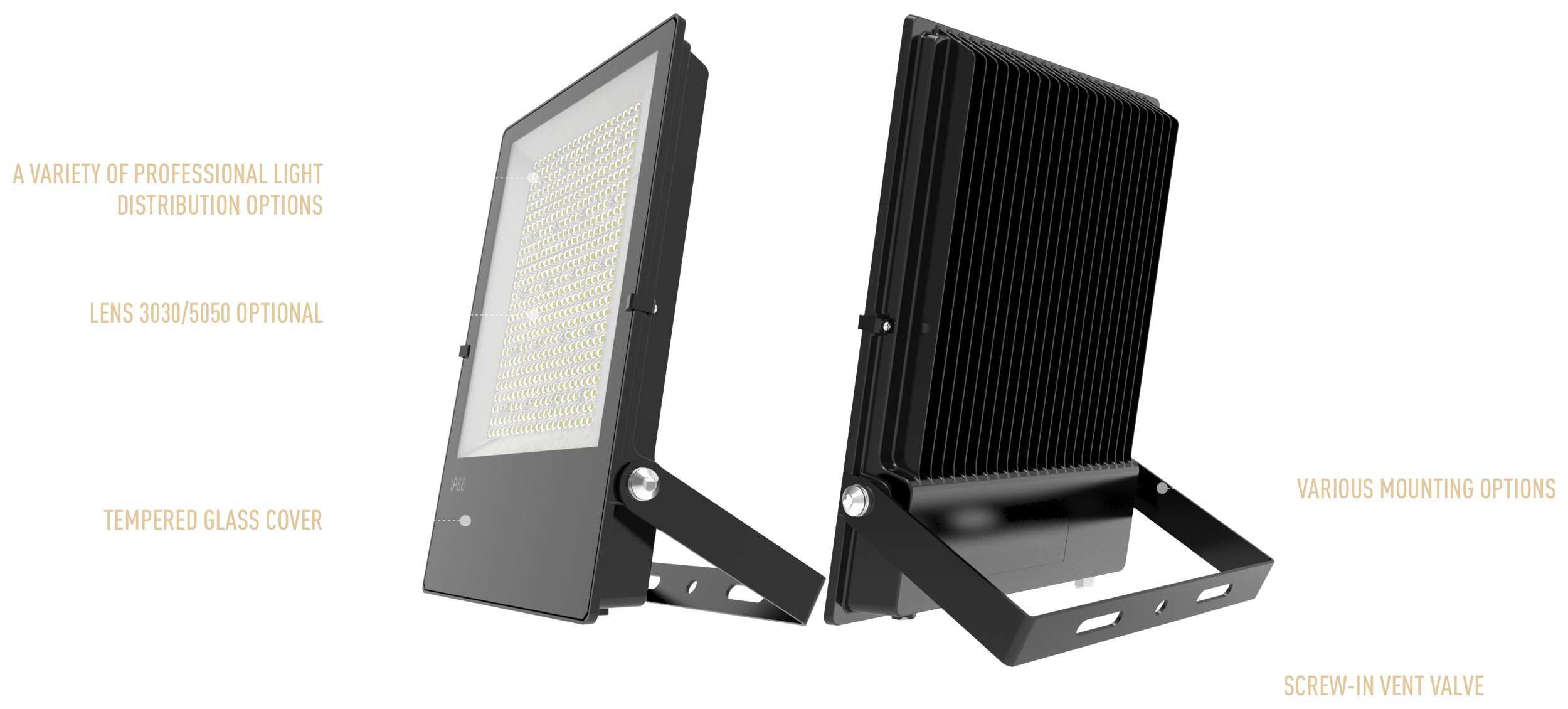

Exploded view, perspective view

Golden Bright FL08 03

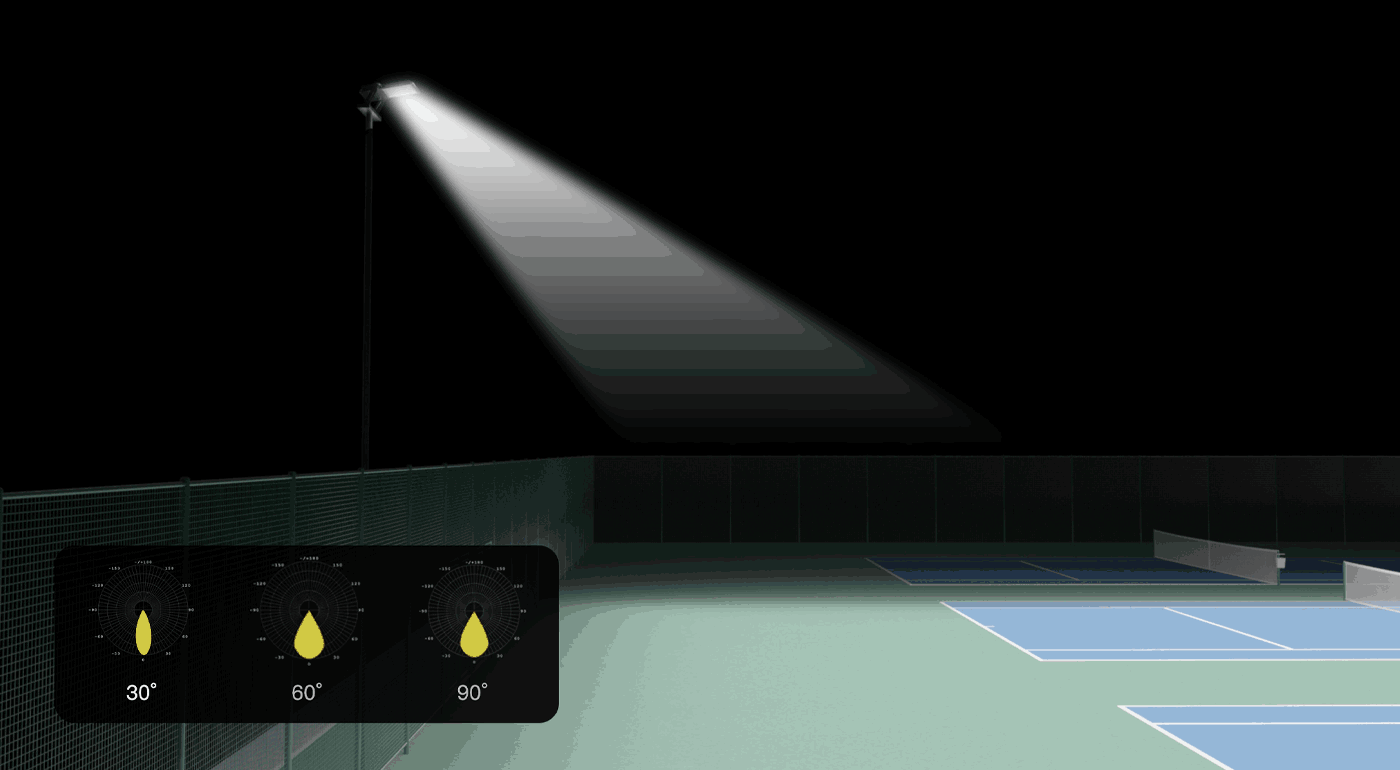

Multi-Angle Display

30°/ 60°/ 90° lens are available.
Golden Bright FL08 GY1

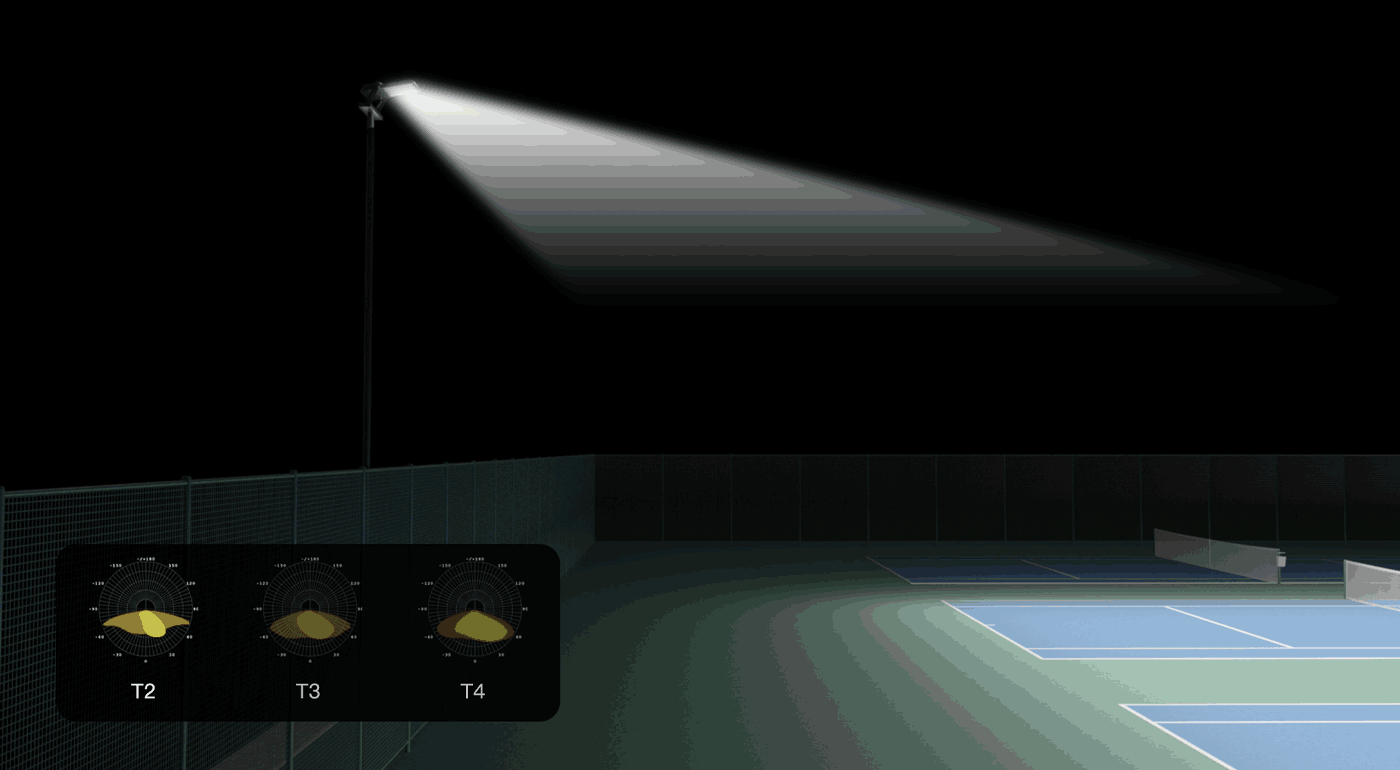

Multi-Angle Display

Asymmetrical Light Distribution helps to focus the Light on the required area. Choose our professional asymmetrical optical lens with excellent back Light control.
Golden Bright FL08 GY2

Technical information

Model
GB-FL08-100W
GB-FL08-150W
GB-FL08-200W
GB-FL08-240W
GB-FL08-300W
GB-FL08-400W
GB-FL08-480W

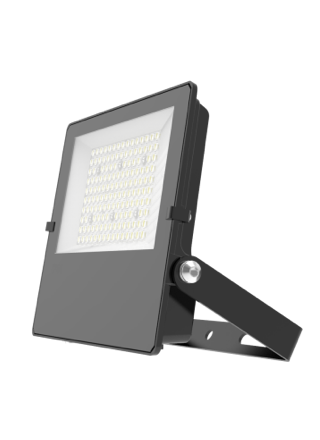

Product Picture
Golden Bright FL08 CP01

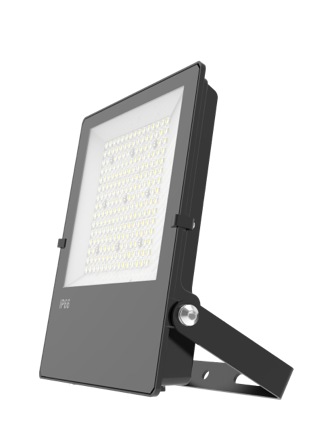

Golden Bright FL08 CP02

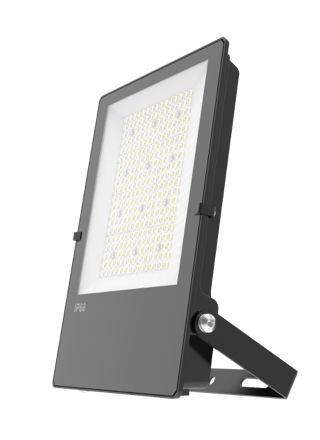

Golden Bright FL08 CP03

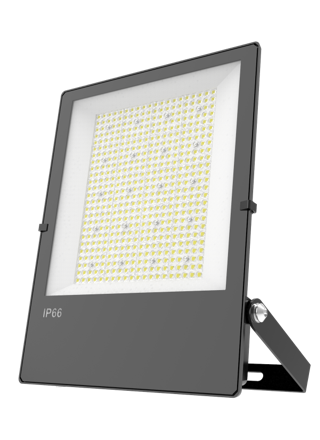

Golden Bright FL08 CP04

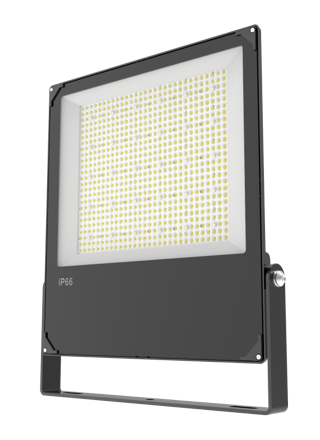

Golden Bright FL08 CP06
Number of Modules
120
180
240
400
400
720
720
LED Light Power
100W
150W
200W
240W
300W
400W
480W
LED ChipSMD3030
Light Efficacy140lm/w (standard)
CRIRa70
Luminous Flux (3030)
14000lm
21000lm
28000lm
33600lm
42000lm
56000lm
67200lm
Color Temperature3000K/ 4000K/ 5000K/ 5700K/ 6500K
LED Light LifeUp to 100,000hrs LM70, Ta 25℃
DriverSosen (standard), Mean well, MOSO, Inventronics, Philips (option)
Driver IsolationClass I EU
Power Factor0.9
Control Dimming0-10V/ DALI/ Instant lighting control
Body Parts MaterialADC12 (standard) / LM6 (option)
OpticPC (standard)/ PMMA (option)
Beam Angel30° / 60° / 90° / 120°            / T2 / T3 / T4
Surge protection options (kV)6KV-Line-Line, 6KV-Line-Earth
Operation VoltageAC 120-277V, 50 / 60Hz
Operating Temperature-30℃~50℃ / 10% ~ 95% (humidity)
Color Stability3 or 5 MacAdam steps
Color Stability5 years

Packing Information

ModelLight SizePackage SizeWeight20GP40HQ
GB-FL04-100W361*328*55mmL400*W375*H110mm / 1pcs4.0kg5.4kg5.4kg
GB-FL04-150W361*406*57mmL455*W400*H110mm / 1pcs5.1kg15.2kg15.2kg
GB-FL04-200W363*468*58mmL525*W400*H110mm / 1pcs20.3kg5.4kg5.4kg
GB-FL04-300W423*542*71mmL615*W465*H135mm / 1pcs24.5kg15.2kg15.2kg
GB-FL04-400W423*542*71mmL615*W465*H135mm / 1pcs30.9kg5.4kg5.4kg
GB-FL04-500W521*656*83mmL735*W575*H145mm / 1pcs24.5kg15.2kg15.2kg
GB-FL04-600W521*656*83mmL735*W575*H145mm / 1pcs30.9kg5.4kg5.4kg
